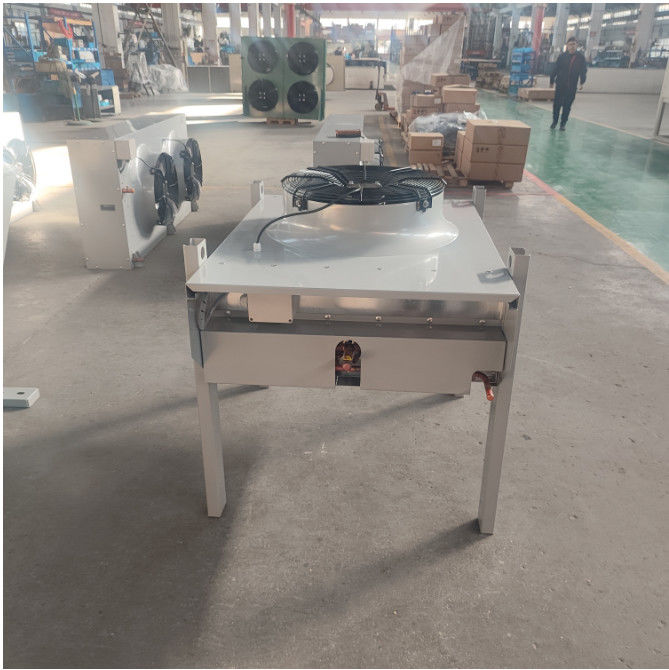

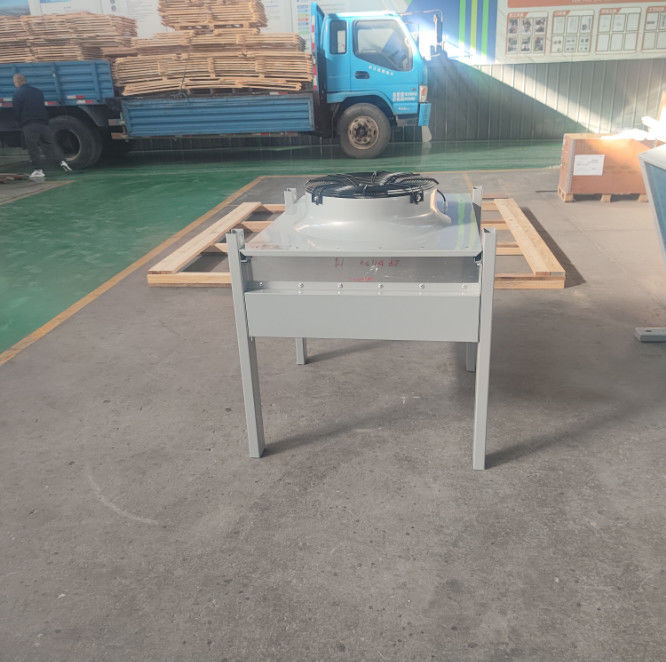

Suitable for horizontal flat plate condensers with high heat transfer requirements, equipped with 3P/380V/50Hz power supply, meeting the needs of refrigerants such as R404A, R507A, R134a, etc

CP series horizontal plate-type condenser product overview

   CP series condenser is designed with horizontal flat plate structure, with air inlet at bottom and air outlet on top; it is mainly equipped with the remotely mounted pistons and parallel units or screw units requiring high heat exchange.
This series of products has the following characteristics:
   1.It is designed with horizontal flat plate structure, fans in one row and fans in double rows.
   2.Enclosure: High-quality galvanized steel plate sprayed with powder coating (silver gray RAL9006); the fan tube is designed with overall stretching large rounded high air tube, it has the characteristics of excellent air guiding effect, low noise and aesthetic appearance.
   3.The side sheet of the heat exchanger is made of aluminum plate, which can effectively protect the copper tube;
   4.Coil: Tube diameter φ9.5, female thread copper pipe, tube spacing 25×21.65 in triangular arrangement, high heat exchange efficiency.
   5.Corrugated aluminum sheet made of hydrophilic aluminum foil is adopted, with the sheet spacing of 2.1mm;
   6.Fan: It is design with standard 3P/380V/50Hz power supply, fitted with φ500 and φ630 external rotor fans, 1-5 fans in one row, 4-10 fans in double rows; it is designed with 4-pole and 6-pole motor, which can meet different noise requirements.
   7.The test pressure of the product is 32bar.
   8.It is compatible with R404A, R507A, R449A, R134a, R22 and other refrigerants.

How to assure quality? Any procedure?

Our QC department will make sure of each step

Do you factory?

We are factory established in 1995 and through 30years developed,welcomed by all our customers.Because of all your support now we are a big family of more than 300 people,covered 50000 square meters,and your supporting is very important of continuing our dream of eating fresh and healthy food.

Why choose us

Professional:30years focus one thing-refrigeration equipments

Material we use sufficient

Certificate:CE, ISO, and cetiifcate of producing special pressure equipment

Projects reference
